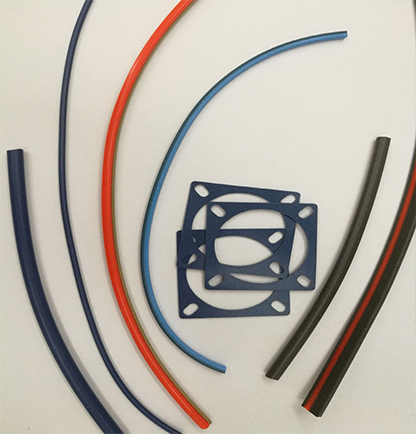

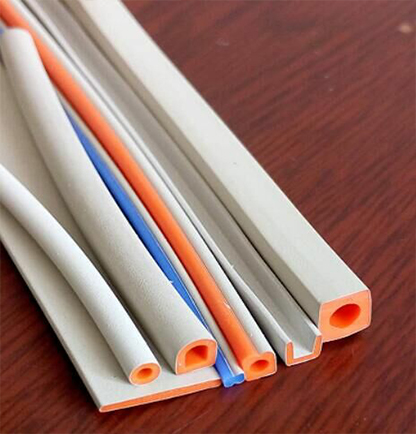

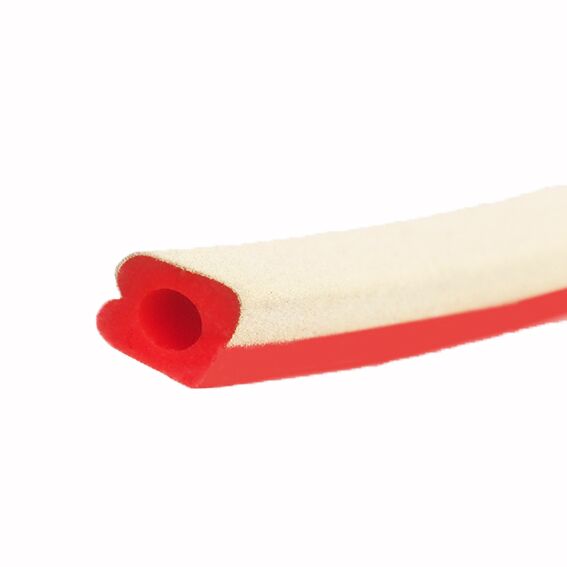

Conductive Elastomer

（UNIT mm）

SOLID   CIRCULAR STRIP

Item

φA

SIZE

Item

φA

SIZE

Depth

Width

Depth

Width

1-01-001-*—*

0.7

0.46

1.4

1-01-021-*—*

4.5

3.7

4.72

1-01-002-*—*

0.9

0.6

1.42

1-01-022-*—*

4.78

3.91

4.95

1-01-003-*—*

1.02

0.75

1.55

1-01-023-*—*

5

4

5.12

1-01-004-*—*

1.22

0.94

1.65

1-01-024-*—*

5.49

4.5

5.77

1-01-005-*—*

1.35

1.04

1.78

1-01-025-*—*

6

4.9

6.27

1-01-006-*—*

1.57

1.24

1.96

1-01-026-*—*

6.35

5.21

6.6

1-01-007-*—*

1.78

1.42

2.13

1-01-027-*—*

7

5.79

7.21

1-01-008-*—*

1.92

1.5

2.22

1-01-028-*—*

7.5

6.12

7.8

1-01-009-*—*

1.98

1.61

2.26

1-01-029-*—*

8

6.6

8.23

1-01-010-*—*

2.03

1.65

2.34

1-01-030-*—*

8.4

6.8

8.5

1-01-011-*—*

2.19

1.76

2.47

1-01-031-*—*

8.8

7.24

8.99

1-01-012-*—*

2.35

1.93

2.64

1-01-032-*—*

9.52

7.75

9.7

1-01-013-*—*

2.52

2.08

2.79

1-01-033-*—*

10

8.18

10.19

1-01-014-*—*

2.62

2.13

2.9

1-01-034-*—*

10.5

8.62

10.72

1-01-015-*—*

2.8

2.34

3.07

1-01-035-*—*

11

8.95

11.15

1-01-016-*—*

3.02

2.49

3.25

1-01-036-*—*

12.17

9.96

12.29

1-01-017-*—*

3.18

2.59

3.43

1-01-037-*—*

12.7

10.2

13

1-01-018-*—*

3.53

2.9

3.73

1-01-038-*—*

13

10.68

13.01

1-01-019-*—*

3.8

3.12

4.01

1-01-039-*—*

13.5

11.48

13.12

1-01-020-*—*

4

3.28

4.22

1-01-040-*—*

14

11.9

13.6

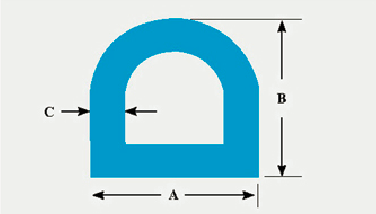

D-TYPE HOLLOW（UNIT mm）

D-TYPE

ITEM

SIZE

A

B

C

1-04-001--*—*

3.18

4.97

1.02

1-04-002--*—*

3.99

2.18

0.51

1-04-003--*—*

3.96

3.98

1.14

1-04-004--*—*

4.75

4.72

1.27

1-04-005--*—*

4.75

5.79

1.02

1-04-006--*—*

5.26

4.75

1.27

1-04-007--*—*

6.25

3.69

0.76

1-04-008--*—*

6.35

6.36

1.57

1-04-009--*—*

6.35

6.36

1.65

1-04-010--*—*

7.52

4.65

0.76

1-04-011--*—*

7.52

4.65

1.27

1-04-012--*—*

7.92

7.92

1.57

1-04-013--*—*

7.92

7.92

1.57

1-04-014--*—*

7.92

7.92

1.57

1-04-015--*—*

10.16

5.85

0.89

1-04-016--*—*

12.37

8.23

1.14

1-04-017--*—*

12.36

8.23

1.4

1-04-018--*—*

12.37

8.23

1.57

1-04-019--*—*

12.37

8.23

2.03

1-04-020--*—*

12.4

7.93

1.4

1-04-021--*—*

12.4

8.23

2.03

1-04-022--*—*

12.75

12.7

1.55

1-04-023--*—*

17.78

15.24

2.54

1-04-024--*—*

19.05

19.06

12.7

1-04-025--*—*

19.05

19.06

1.91

1-04-026--*—*

24.77

15.75

2.36

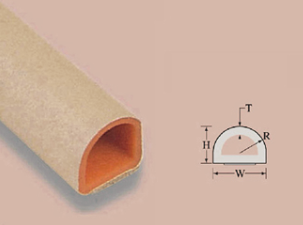

ITEM

H

W

R

T

6-6-001--*—*

.032

0.81

.030

0.73

.015

0.38

.012

0.30

6-6-002--*—*

.062

1.57

.156

3.96

.102

2.59

.016

0.41

6-6-003--*—*

.062

1.57

.058

1.47

.031

0.78

.012

0.30

6-6-004--*—*

.106

2.7

.250

6.35

.125

3.18

.017

0.43

6-6-005--*—*

.098

2.49

.098

2.49

.049

1.24

.020

0.51

6-6-006--*—*

.125

3.17

.109

2.77

.055

1.4

.024

0.61

6-6-007--*—*

.146

3.71

.146

3.71

.073

1.85

.016

0.41

6-6-008--*—*

.187

4.75

.172

4.37

.094

2.39

.030

0.76

6-6-009--*—*

.240

6.1

.460

11.68

.230

5.84

.040

1.02

6-6-010--*—*

.250

6.35

.234

5.94

.125

3.17

.037

0.94

6-6-011--*—*

.250

6.35

.375

9.53

.188

4.77

.037

0.94

6-6-012--*—*

.312

7.92

.297

7.54

.156

3.96

.034

0.86

6-6-013--*—*

.375

9.53

.359

9.12

.187

4.75

.040

1.02

6-6-014--*—*

.437

11.10

.422

10.70

.218

5.54

.040

1.02
