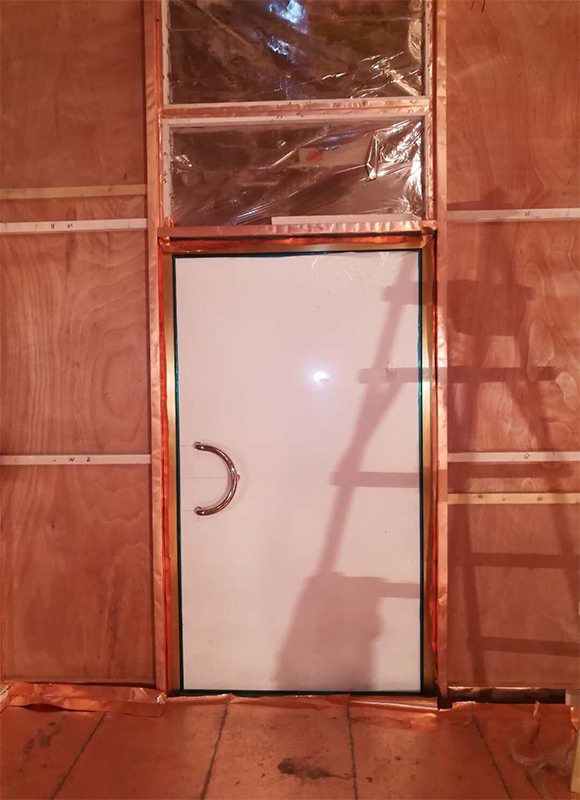

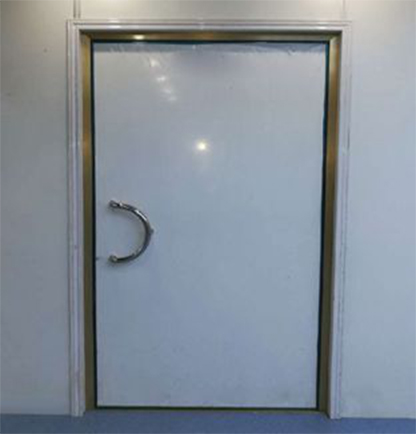

RF Shielded Doors offer the highest protection and feature a damage-free closure seal guaranteed to prevent RFI/EMI leakage.
Our doors are constructed from lightweight material and use a cam latch, making them extremely easy to operate.
RF door for RF shield enclosure include Single leaf RF door, Double Leaf RF door, Sliding RF door, Electric RF door, Pneumatic RF door.
So we can provided customized RF Door product for you.
|
Application |
MRI scan rooms, RF shielded labs and test rooms. |
|
Structure: |
Outer material with Al or Stainless Steel Material Inner with wooden frame and copper material packing in the middle of RF Door. |
|
Dimensions |
4′x 7′(1200x2100mm)standard,Custom sizes available. |
|
Construction |
Solid core, both sides laminated |
|
Hardware |
Pull/Push handle with locking Systems |
|
RF Acoustic |
Standard 70 db |
|
RF Attenuation |
Standard 100 db |
|
Weight |
120kg (without packing)/ 200kg (with packing) |
|
Package |
In Wooden case |
