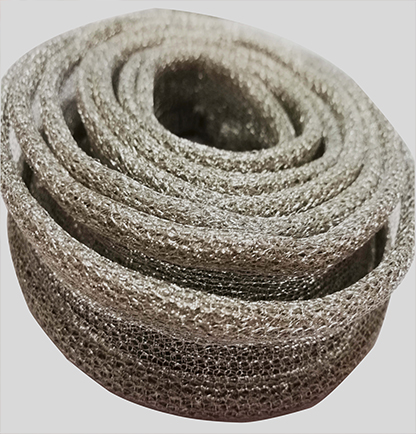

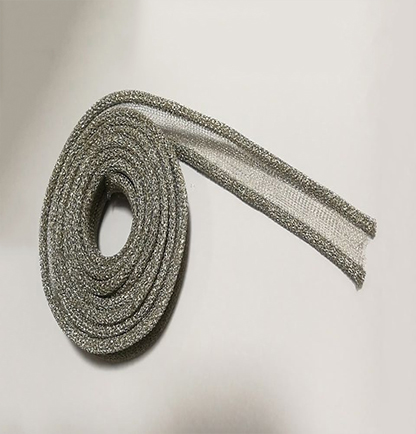

Specification:
1.Specifications and Material
|
Monel - BS3075 - NA13 |
(0.11 mm diameter) |
|
Aiuminium5056 - AMS 4182 |
(0.13 mm diameter) |
|
TCS - ASTM B520 |
(0.11 mm diameter) |
|
Stainless Steel - Alloy 304 |
(0.13 mm diameter) |
2.Performance
|
Frequency |
Aluminum |
TCS |
S/Steel |
||
|
10KHz |
H |
45 |
40 |
60 |
40 |
|
100KHz |
H |
49 |
45 |
65 |
44 |
|
1MHz |
H |
60 |
60 |
85 |
58 |
|
1MHz |
E |
125 |
125 |
125 |
125 |
|
10MHz |
E |
120 |
120 |
120 |
120 |
|
100MHz |
E |
100 |
100 |
108 |
100 |
|
400MHz |
P |
98 |
95 |
99 |
94 |
|
1GHz |
P |
85 |
76 |
78 |
76 |
|
10GHz |
P |
80 |
65 |
62 |
60 |
3.Specification
|
Rectangular |
Round With Tail |
||
|
Height×Width |
Part Number |
Dia×Length |
Part Number |
|
1.57x1.57 |
20-0016-0016 |
1.57x9.53 |
30-0016-0095 |
|
1.57x4.75 |
20-0016-0CK8 |
1.57x15.9 |
30-0016-0159 |
|
1.57x6.35 |
20-0016-0064 |
2.36x12.7 |
30-0024-0127 |
|
1.57x^.92 |
20-0016-0080 |
2.36x15.9 |
30-0024-0159 |
|
1.57x9.53 |
20-0016*0095 |
3.18x12.7 |
30-0032-0127 |
|
1.57x12.7 |
20-0016-0127 |
3.18x15.9 |
30-0032-0159 |
|
1.57x15.9 |
20-0016^)159 |
3.18x19.1 |
30-0032-0191 |
|
1.57xJ9.1 |
20-0016^)191 |
3.96x12.7 |
30-0040-0127 |
|
1.57x25.4 |
20*0016*0254 |
3.96x19.1 |
30-0040-0191 |
|
3.18x3.96 |
20-0032-0032 |
7.92x25.4 |
30-0080-0254 |
|
3.18x6.35 |
20-0032-0CK8 |
9.53x19.1 |
30-0095-0191 |
|
3.18x'92 |
20-0032-0064 |
9.53x25.4 |
30-0095-0254 |
|
3.18x9.53 |
20-0032-0080 |
11.1x19.1 |
30-0111-0191 |
|
3.18x12.7 |
20-0032-0095 |
11.1x25.4 |
30-0111-0254 |
|
3.18x15.9 |
20-0032-0127 |
12.7x19.1 |
30-0127-0191 |
|
3.18x19.1 |
20-0032-0159 |
12.7x25.4 |
30-0127-0254 |
|
Round section |
Rectangular |
||
|
Outside Dia x Inside Dia |
Part Number |
Height×Width |
Part Number |
|
1.57 X----- |
60-0016 |
2.36x6.35 |
70-0024-0064 |
|
2.36 x —— |
60-0024 |
3.18x3.18 |
70-0032-0032 |
|
3.18x1.57 |
60-0032-0016 |
3.18x4.78 |
70-0032-0048 |
|
4.75x3.18 |
60-0048-0032 |
3.18x6.35 |
70-0032-0064 |
|
6.35x3.18 |
60-0064-0032 |
3.18x9.53 |
70-0032-0095 |
|
7.92x4.75 |
60-0080-0048 |
3.18x12.7 |
70-0032-0127 |
|
9.53x6.35 |
60-0095-0064 |
4.78x4.78 |
70-0048-0048 |
|
11.1 x7.92 |
60-0111-0080 |
4.78x6.35 |
70-0048-0064 |
|
Round With Tail |
Twin Round with Tail |
||
|
Dia x Length |
Part Number |
Dia x Length |
Pait Number |
|
1.57 x 12.7 |
80-0016-0127 |
3.18x9.53 |
90-0032-0016-0095 |
|
1.57 x 19.1 |
80-0016-0191 |
3.18 x 12.7 |
90-0032-0016-0127 |
|
2.36 x 12.7 |
80-0024-0127 |
3.13 x 15.9 |
90-0032-0016-0159 |
|
2.36 x 19.1 |
80-0024-0191 |
4.75 x 15.9 |
90-0048-0032-0159 |
|
3.18 x 12.7 |
80-0032-0016-0127 |
4.75 x 19.1 |
90-0048-0032-0191 |
|
3.18 x 15.9 |
80-0032-0016-0159 |
4.75 x 25.4 |
90-0048-0032-0254 |
|
3.18 x 19.1 |
80-0032-0016-0191 |
6.35 x 15.9 |
90-0064-0032-0159 |
|
3.96 x 12.7 |
80-0040-0020-0127 |
6.35 x 19.1 |
90-0064-0032-0191 |
|
3.96 x 19.1 |
80-0040-0020-0191 |
6.35 x 25.4 |
90-0064-0032-0254 |
|
9.53 x 19.1 |
80-0095-0064-0191 |
9.53 x 25.4 |
90-0095-0064-0254 |
|
Round Section |
Twin Round with Tail |
||
|
Diameter |
Part Number |
Dia×Length |
Part Number |
|
1.57 |
10*0016 |
1.57x9.53 |
40-00*6-0095 |
|
3.18 |
10-D032 |
1.57x15.9 |
40-0016-0159 |
|
3.96 |
10*0040 |
2.36x12.7 |
40-0024-0127 |
|
4.75 |
10*0048 |
3.18x9.53 |
40-0032-0095 |
|
6.35 |
10*0064 |
3.18x12.7 |
40-0032-0127 |
|
7.92 |
10*0080 |
3.18x15.9 |
40-0032-0159 |
|
9.53 |
10*0095 |
4.75x15.9 |
40-0048-0159 |
|
11.1 |
10*0111 |
4.75x19.1 |
40-0048-0191 |
|
12.7 |
10*0127 |
4.75x25.4 |
40-0048-0254 |
